Description

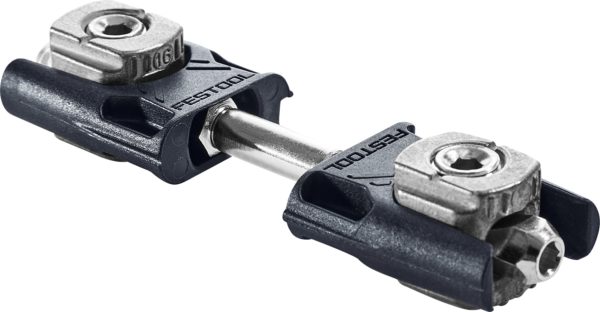

Perfect joinery. Now with even more versatility. The new knock-down DOMINO basic structure connectors and furniture connectors.
Strenghts and Benefits US
- The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally – in combination with DOMINO or a series of holes.
- Because of its high tolerance compensation and high stability, the detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer.
- All joints are simple and quick to machine using the DOMINO DF 500 joiner. No additional special machine is required.
- The connectors’ large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
- Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture.
- The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly.
- for 25 center panel joints with the DF 500 and drilling series of holes
- drill template is required for drilling holes in the surface of the DOMINO D 8 mm joint fixture
- The DOMINO/LR 32 MSV-LR 32 D8/25 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500
IncludesBolt with external thread for centre panel connector 25 шт., Bolt with internal thread for centre panel connector 25 шт., Plastic trays 50 шт., Cross anchor with threaded pin 50 шт., without cover caps, in carton
